Chattanooga OptiFlex K-1 Knee CPM

Get Quote

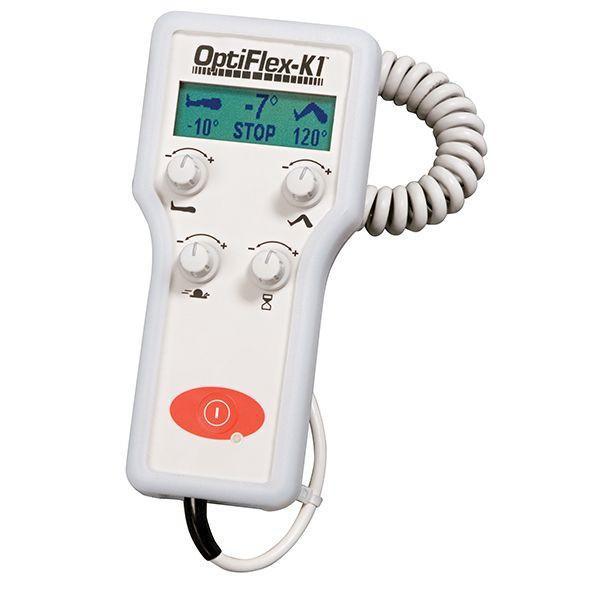

The Chattanooga OptiFlex K-1 Knee CPM includes a choice of pendant (also known as a hand controller).

Warranty: 2 Years - Manufacturer Defects.

The OptiFlex K-1 Knee CPM offers interchangeable pendants, or hand controls, for the most versatility. It can comfortably support knees and legs for patients who are between 4 feet and 6.5 feet tall. In addition, a reversible footplate is included to fit shorter legs. It's wide frame and low profile allow room for the patient and clinician to work together seamlessly without too much obstruction.

This item is used for postoperative treatments of Continuous Passive Motion (CPM). Continuous Passive Motion is used to help the joints of the body recover after surgery. After a surgical procedure, if the joint is not exercised, then the surrounding tissue will become stiff and scar tissue will form. To ensure the patient maintains the maximum range of motion post-surgery, the CPM is used during the months of recovery following the operation.

Features

Chattanooga OptiFlex K-1 Knee CPM Features

  • Patient lock-out feature.
  • Accommodates a wide range of patient heights.
  • On-board power supply.
  • ROM -10 to 120.

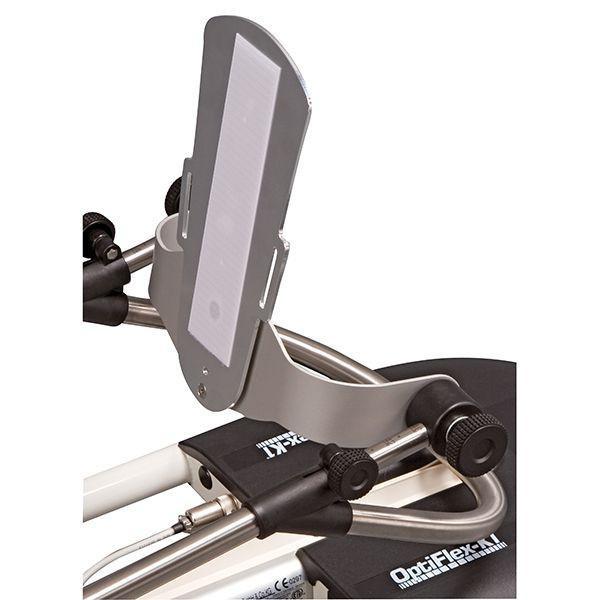

  • Reversible footplate to fit shorter legs.
  • Faster motor speed and low-profile, wide, closed-based frame for stability.

Specifications

Chattanooga OptiFlex K-1 Knee CPM Specifications

  • Knee Flexion: 120 degrees.
  • Knee Extension: -10 degrees.
  • Speed: 25 to 180 degrees/minute.
  • Pauses: 0 - 59 seconds.
  • Force Reversal: 45 Kp of force (built in).
  • Patient Height: 4 - 6.6 ft (1.2 - 2 m).
  • Calf Length Range: 10 - 22" (25.4 - 55.9 cm).
  • Thigh Length Range: 12 - 19" (30.4 - 48.2 cm).
  • Mains Power: 100 - 240 V, AC 50 - 60 Hz.
  • Weight: 23 lb (10.4 kg).
  • Dimensions: 38" (L) x 14" (W) x 9" (H) (97 cm x 36 cm x 23 cm).
  • Shipping Weight: 54 lb (24.5 kg).
  • Electrical Safety Class: Class 1, Type B.
  • Safety Tests: IEC 60601, 1:1988 +A1:1991, +A2:1995, CAN/CSA C22.2 NO 601.1 M90, ANSI/UL 60601-1, IEC 60601-1-2, IEC 60601-1-4, ISO 14971, ISO 10993-1.

Configurations

Chattanooga OptiFlex K-1 Knee CPM Configurations

Part Number Pendant Hand Control Options/Functions
#2025 Standard key lock function, pauses, and speed
#2026 Classic key lock function, pauses, speed, timer, reverse on load, warm up protocol, default setting, transport setting, and chip card selectable
#2028 Comfort key lock function, pauses, speed, timer, reverse on load, warm up protocol, default setting, transport setting, chip card selectable, EROM repeat, stretch protocols, workout protocols, comfort protocols, and therapy documentation

Accessories

Chattanooga OptiFlex K-1 Knee CPM Accessories

The OptiFlex K-1 Knee CPM is commonly purchased with:

  • #20533: Chattanooga CPM Patient Kit - OptiFlex 3, OptiFlex K-1, Fleece.
  • #4520: Chattanooga Trolley CPM Package.
  • #40128: Chattanooga Universal 34" Strap Kit.
  • #20730: Chattanooga Instructional CD.

Literature

Chattanooga OptiFlex K-1 Knee CPM Literature

Chattanooga CPM and Homecare Catalog

Chattanooga OptiFlex K-1 Knee CPM Brochure
