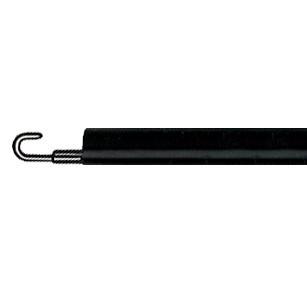

The ConMed Universal Plus J-Hook Extendable Electrode (5 / Case) allows varied tip exposure during electrosurgery. It is used with the #60-6010 Universal Plus Control Handles.

Features

ConMed Universal Plus J-Hook Extendable Electrode Features

• Extended insulation at the base of each electrode tip provides greater patient safety, precise surgeon control, and reduces possible collateral desiccation.

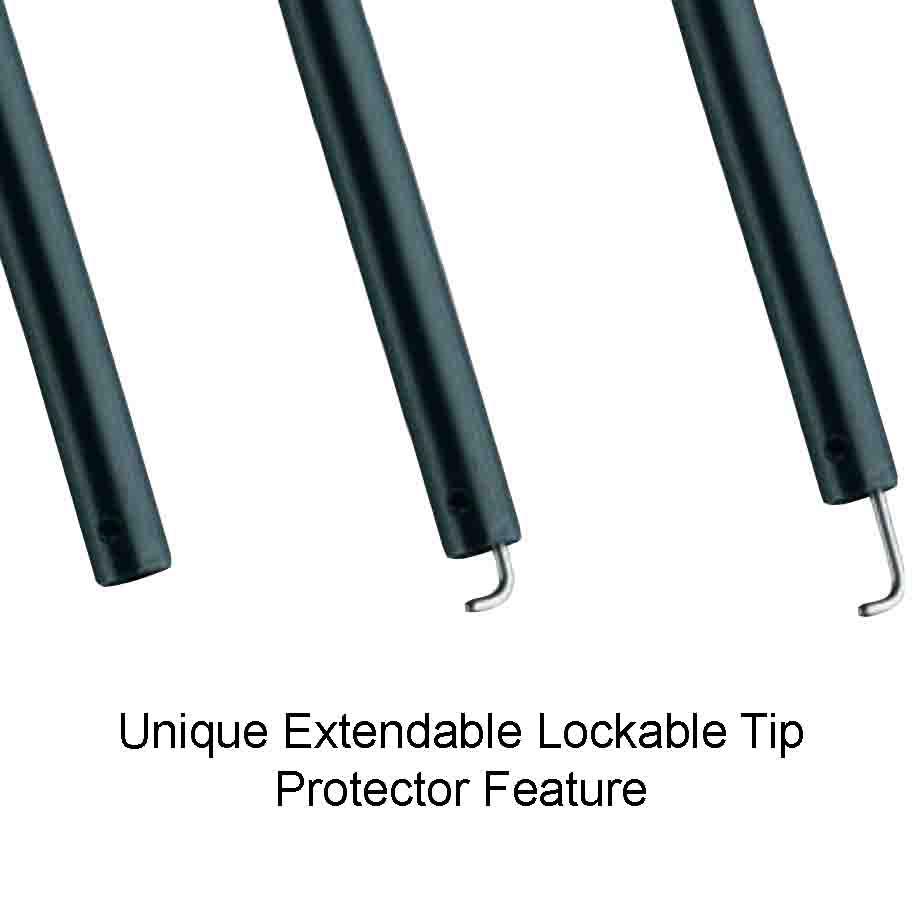

• Extendable, lockable tip protector allows varied tip exposure during electrosurgery and coverage of electrode, protecting viscera while suctioning.
• Optional Stealth ER Eschar Resistant Coating is a non-stick substance that resists the build up of eschar, decreasing thermal necrosis and smoke.

Configurations

ConMed Universal Plus J-Hook Extendable Electrode Configurations

• #60-5272-227: 10.6" (27 cm) long.
• #60-5272-232: 12.6" (32 cm) long.
• #60-5274-227: 10.6" (27 cm) long with Stealth Coating.
• #60-5274-232: 12.6" (32 cm) long with Stealth Coating.
• #60-5274-244: 17.3" (44 cm) long with Stealth Coating.

Specifications

ConMed Universal Plus J-Hook Extendable Electrode Specifications

• Diameter: 5 mm.
• Shipping Dimensions: 18" x 2" x 4" (45.7 cm x 5.1 cm x 10.2 cm).
• Shipping Weight: 0.82 lb (0.37 kg).

Literature

ConMed Universal Plus J-Hook Extendable Electrode Literature

ConMed Universal Plus Brochure
