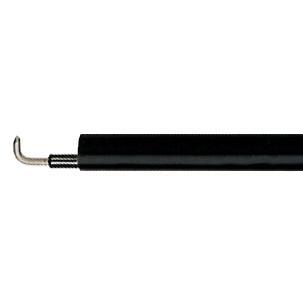

ConMed Universal Plus L-Hook Extendable Electrode

Get Quote

The ConMed Universal Plus L-Hook Extendable Electrode allows varied tip exposure during electrosurgery. It is used with the #60-6010 Universal Plus Control Handles.

Features

ConMed Universal Plus L-Hook Extendable Electrode Features

  • Extended insulation at the base of each electrode tip provides greater patient safety, precise surgeon control and reduces possible collateral desiccation.
  • Extendable, lockable tip protector allows varied tip exposure during electrosurgery and coverage of electrode, protecting viscera while suctioning.
  • Optional Stealth ER Eschar Resistant Coating is a non-stick substance that resists the build up of eschar, decreasing thermal necrosis and smoke.

Configurations

ConMed Universal Plus L-Hook Extendable Electrode Configurations

Product Number Length Stealth Coating Diameter Quantity Shipping Dimensions Shipping Weight
#60-5272-127 10.6" (27 cm) No 5 mm 5 / Case 18" x 2" x 4" (45.7 cm x 5.1 cm x 10.2 cm) 0.82 lb (0.37 kg)
#60-5272-132 12.6" (32 cm) No 5 mm 5 / Case 18" x 2" x 4" (45.7 cm x 5.1 cm x 10.2 cm) 0.82 lb (0.37 kg)
#60-5274-127 10.6" (27 cm) Yes 5 mm 5 / Case 18" x 2" x 4" (45.7 cm x 5.1 cm x 10.2 cm) 0.82 lb (0.37 kg)
#60-5274-132 12.6" (32 cm) Yes 5 mm 5 / Case 18" x 2" x 4" (45.7 cm x 5.1 cm x 10.2 cm) 0.82 lb (0.37 kg)
#60-5274-144 17.3" (44 cm) Yes 5 mm 5 / Case 18" x 2" x 4" (45.7 cm x 5.1 cm x 10.2 cm) 0.82 lb (0.37 kg)

Literature

ConMed Universal Plus L-Hook Extendable Electrode Literature

ConMed Universal Plus Brochure
