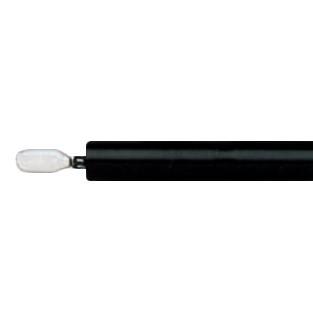

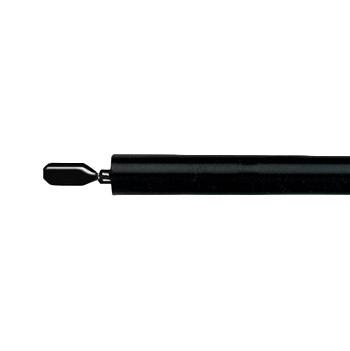

ConMed Universal Plus Spatula Extendable Electrode (5/Case)

Get Quote

The ConMed Universal Plus Spatula Extendable Electrode allows varied tip exposure during electrosurgery. It is used with the #60-6010 Universal Plus Control Handles.

Features

ConMed Universal Plus Spatula Extendable Electrode Features

  • Extended insulation at the base of each electrode tip provides greater patient safety, precise surgeon control, and reduces possible collateral desiccation.
  • Extendable, lockable tip protector allows varied tip exposure during electrosurgery and coverage of electrode, protecting viscera while suctioning.
  • Optional Stealth ER Eschar Resistant Coating is a non-stick substance that resists the build up of eschar, decreasing thermal necrosis and smoke.

Configurations

ConMed Universal Plus Spatula Extendable Electrode Configurations

Product Number Length Stealth Coating Diameter Quantity Shipping Dimensions Shipping Weight
#60-5272-027 10.6" (27 cm) No 5 mm 5 / Case 18" x 2" x 4" (45.7 cm x 5.1 cm x 10.2 cm) 0.82 lb (0.37 kg)
#60-5272-032 12.6" (32 cm) No 5 mm 5 / Case 18" x 2" x 4" (45.7 cm x 5.1 cm x 10.2 cm) 0.82 lb (0.37 kg)
#60-5274-027 10.6" (27 cm) Yes 5 mm 5 / Case 18" x 2" x 4" (45.7 cm x 5.1 cm x 10.2 cm) 0.82 lb (0.37 kg)
#60-5274-032 12.6" (32 cm) Yes 5 mm 5 / Case 18" x 2" x 4" (45.7 cm x 5.1 cm x 10.2 cm) 0.82 lb (0.37 kg)
#60-5274-044 17.3" (44 cm) Yes 5 mm 5 / Case 18" x 2" x 4" (45.7 cm x 5.1 cm x 10.2 cm) 0.82 lb (0.37 kg)

Literature

ConMed Universal Plus Spatula Extendable Electrode Literature

ConMed Universal Plus Brochure
