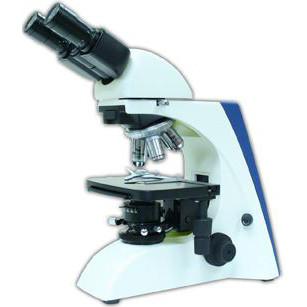

Seiler Microlux IV Compound Microscope

Get Quote

The Seiler Microlux IV Compound Microscope comes with five Infinity Corrected Plan Objectives: 4x, 10x, 20x, 40x, and 100x for sharper images and virtually no aberrations.

Warranty: Lifetime Limited (Optics and Mechanics) - Free from Defects / 3 Years (Electronics).

The Microlux IV is Seiler's most versatile compound microscope with optional video or digital configurations.

Specifications

Seiler Microlux IV Compound Microscope Specifications

  • Infinite Plan Objectives: 4x, 10x, 20x, 40x, and 100x.
  • Seidentopf Type Binocular Head: 30° Inclined, 360° Rotable.
  • Kohler Illumination System: Halogen 12 V / 20 W (optional: LED).
  • Eyepiece: WF10X / 20 mm.
  • Condenser: Abbe Type N.A. = 1.25 with iris diaphragm.
  • Nosepiece: Reversed quintuple click-stop revolving mechanism with multiple ball bearings.
  • Interpupillary Adjustable Distance: 50 - 75 mm.
  • Diopter Adjustable Range: ± 5°.
  • Coaxial coarse and fine focusing control.
  • Double layer mechanical stage with removable slide holder (190 mm x 140 mm).
  • Travel stage area 78 mm x 55 mm with a right-hand stage handle.
  • Anti-fungal systems.
  • 110 - 240 V universal power supply.

Configurations

Seiler Microlux IV Compound Microscope Configurations

  • #MLX817: Standard.
  • #MLX817-DV: With Dual View.
  • #MLX817-DV-LED: With Dual View LED.
  • #MLX817-PH: With Phase Contrast Objectives.
  • #MLX819: With Video.

Literature

Seiler Microlux IV Compound Microscope Literature

Seiler Medical Products Catalog

Seiler Microlux IV Compound Microscope Spec Sheet

Seiler Microlux IV Compound Microscope User's Manual

Seiler Microlux IV - LED Compound Microscope User's Manual
