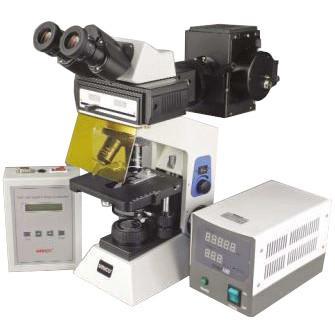

Unico G506 Infinity Plan Epi-Fluorescence Heated Stage Microscope

Get Quote

The Unico G506 Infinity Plan Epi-Fluorescence Heated Stage Microscope comes complete with a dust cover, 2 extra fuses, a neutral density filter, and an operation manual.

Warranty: 5 Years Limited (1 Year on Electrical System excludes bulbs and fuses).

The Unico G506 Infinity Plan Epi-Fluorescence Heated Stage Microscope is designed as a universal platform capable of offering the most advanced options to the discriminating user. From the economic to the most advanced models, the G500 features flawless optics that will provide high resolution images, ergonomic controls, bright and dependable LED illumination, and a host of other features.

Epi-Fluorescence with Heated Stage Applications: Research is being conducted with live cells using fluorescence illuminated microscopes. Heated stages are required to keep the temperature at the right setting to help keep the cells alive while being viewed.

Unico G506 Infinity Plan Epi-Fluorescence Heated Stage Microscope Features:


    • Head:
    • G506HS: Seidentopf Binocular Head (Inclined 30ç).
    • G506THS: Seidentopf Camera-Ready Trinocular Head (Inclined 30ç).
  • Nosepiece: 5 position nosepiece.
  • Eyepiece: Paired wide field 10X (FN 18 mm) high point eyepieces with dual diopter. A pointer or reticule can be added.
    • Objectives: All objectives are parfocal, parecentered, and color-coded.
    • Plan Objectives: 10X, 20X, 40X, and 100X (oil).
  • Filter Cubes: 4 slots: UV3, B3 (blue), and G3 (green).
  • Filter Holder: 4 position filter holder (3 filters supplied).
  • Focus: The low position coaxial coarse and fine focusing system designed to lessen user fatigue. The coarse focus tension control allows to increase or decrease the focusing tension. The safety stop prevents damage to objectives and specimens. The fine focusing is graduated at 0.002 mm.
  • Stand: Ruggedly constructed all metal stand and broad low profile base.
  • Stage: Heavy duty, built-in graduated mechanical stage with low position coaxial X-Y controls. Ball bearing movement (with dovetail mechanism) allows for smooth, precise adjustments. Stage size is 180 mm x 150 mm and the range of X-Y stage movement is 80 mm x 50 mm.
  • Condenser: Abbe condenser N.A. 1.25 with graduated iris diaphragm is focusable and centerable.
  • Illumination: 3 watt LED (bottom) and 100 watt mercury bulb (top).
  • UV Panel: UV blocking panel above stage.
  • Power Input: 90-240 V. Fuse rating is 250 V and 1.5 A.
    • Size and Weight:
    • Size: 18" Height x 6" Width x 12" Depth.
    • Weight: 14.5 lbs.
    • Shipping Size: 21" Length x 19" Width x 10" Height.
    • Shipping Weight: 19 lbs.


Unico G506 Infinity Plan Epi-Fluorescence Heated Stage Microscope Configurations:


  • G506HS: G506 Epi-Fluorecence Binocular Microscope with Seidentopf Head, Paired 10x Eyepiece, set of Infinity Plan Objective 10x-20x-40x-100x, EPI-Fluorescent Attachment including Blue(B3), Green(G3), UV3 Filters, Incident 100 W Mercury Illuminator, & Heated Stage.
  • G506THS: G506 Epi-Fluorecence Trinocular Microscope with Seidentopf Head, Paired 10x Eyepiece, set of Infinity Plan Objective 10x-20x-40x-100x, EPI-Fluorescent Attachment including Blue(B3), Green(G3), UV3 Filters, Incident 100 W Mercury Illuminator, & Heated Stage.


To complete the Trinocular set-up, these items must be purchased separately:

  • G500-8020: C-Mount Camera Adapter with 0.35X Reducing Lens and Diopter. Compatible with all G500 series trinocular microscopes.
  • B6-8185: Digital Video C-Mount Camera (5.6 MP / CCD).


Unico G506 Infinity Plan Epi-Fluorescence Heated Stage Microscope Literature:


Unico G500 Series Advanced Microscopes Brochure
