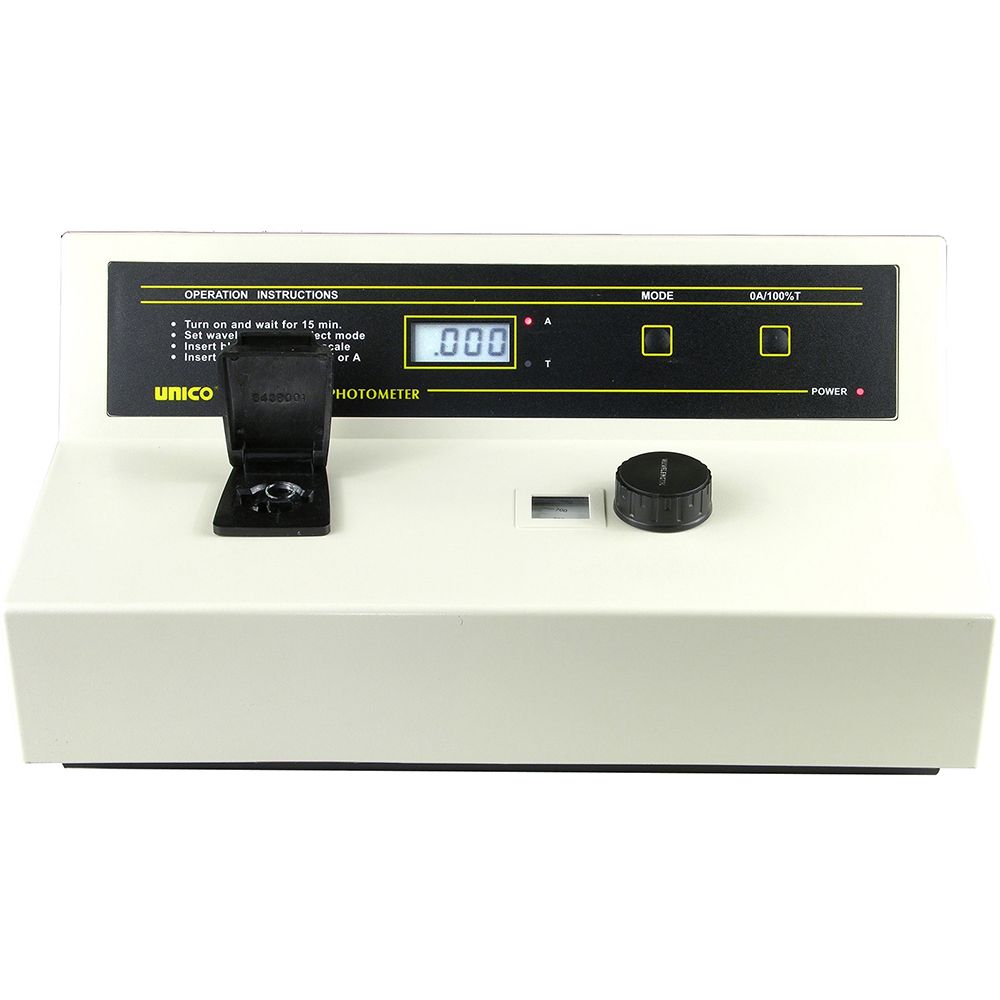

Unico S1100 Visible Spectrophotometer

Get Quote

The Unico S1100 Visible Spectrophotometer comes complete with (12x) Glass Tube Cuvettes (#S-90-301), a 10 mm Square Cuvette Adapter, dust cover, and user manual.

Warranty: 1 Year.

The S1100 Visible Spectrophotometer is simple, reliable, and economical. Great for use in many types of laboratories, including educational, clinical, industrial, and environmental. The S1100 offers standard %T and Abs Mode. Windows 7/10 Data Collection Software is available.

The high quality Silicon Photodiode detector and 1200 lines/mm grating assures high performance. Software data can be easily exported to Microsoft Excel for further processing and analysis.

Features

Unico S1100 Visible Spectrophotometer Features

  • Auto zero function.
  • One-touch blanking.
  • Automatic filters are built-in for ease of operation.
  • Large digital display allows for quick and easy readings.
  • Solid state detector for entire wavelength range.
  • Flexible sample compartment works with round tubes or square cuvettes.
  • Wavelength knob with built-in metal stopper is maintenance free.
  • CE approved.

Specifications

Unico S1100 Visible Spectrophotometer Specifications

  • Spectral Bandwidth: 20 nm.
  • Monochromator: Single Beam, Grating System (1200 Lines/mm).
  • Wavelength Range: 335 - 1000 nm (Visible).
  • Wavelength Accuracy: ± 2 nm.
  • Wavelength Repeatability: ± 1 nm.
  • Stray Light: < 0.5%T at 340 and 400 nm.
  • Photometric Range: 0 - 125%T / 0 - 2 A.
  • Photometric Accuracy: ± 2.0 T%.
  • Data Port: USB.
  • Application Software: Windows 7/10.
  • Light Source: Tungsten Halogen Lamp.
  • Power Requirements: (switchable)
    • #S-1100: 110 V / 50 Hz.
    • #S-1100E: 220 V / 60 Hz.
  • Size and Weight:
    • Size: 16" x 12" x 8" (406 mm x 305 mm x 203 mm).
    • Weight: 14 lb (6.3 kg).
    • Shipping Size: 19.5" x 16.1" x 11.3" (496 mm x 410 mm x 286 mm).
    • Shipping Weight: 16 lb (7.3 kg).

Literature

Unico S1100 Visible Spectrophotometer Literature

Unico Spectrophotometer Catalog

Unico S1100 and S1100RS Visible Spectrophotometer Parts List

Unico S1100 and S1100RS Visible Spectrophotometer Software Manual
